HT100A Huatest Oscilloscope Technical Specification：
|
Model |
HT100A |
|
Bandwidth |
100MHz |
|
Channels |
2 |
|
Realtime Sample Rate |
1.0GS/s |
|
Rise Time |
<3.5ns |
|
Time Base Range |
5ns—50s/div |
|
Display |
Color |
|
Input Coupling |
DC, AD, GND |
|
Input Impedance |
1MΩ±2%, When 16pF±3pF |
|
Sensitivity |
2mV-5V/div |
|
Resolution |
8 bits |
|
Bandwidth Limit |
20MHz |
|
Trigger Sources |
CH1, CH2, Ext, Ext/5, AC Line |
|
Trigger Type |
Edge, Video, Pulse Width |
|
Record Length |
2048 points/channel |
|
Automatic Measurements |
Vavg, Vpp, Veff, Vmax, Vmin, Rise Time, Fall Time,
Positive Width, Negative Width, Closure, Frequency, Period |
|
Storage |
10 Waveforms, 10 Setups |
|
Mathematic Functions |
FFT, ＋, －, × |
|
LCD Type |
TFT |
|
LCD Resolution |
320×240 |
|
Contrast Gradient |
Adjustable |
|
Brightness |
65cd/m2 |
|
Supply Voltage |
AC220V±20% 50Hz |
|
Power Dissipation |
<30W |
|
Connection |
USB |
|
Size |
153mm×320mm×98mm |
|
Weight |
Net Weight: 1.8 kg
Gross Weight: 2.6 kg |

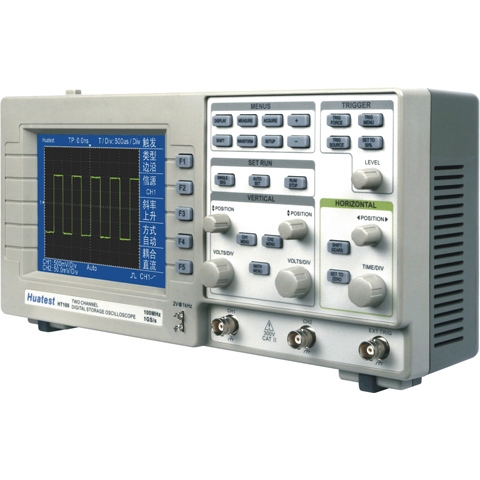

Oscilloscope HT100A
|
