Details

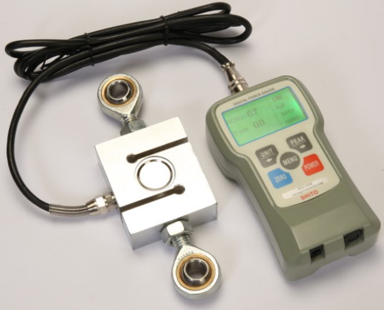

SHITO Sensor Outside Digital Force Gauge
SHITO Sensor Outside Digital Force Gauge has sixteen models，Measured values as low as 200 gf, as much as 20Tf,mainly for testing tension, pressure, plug power, breaking edge, open edge, curved edge, open edge, tensile strength, bonding strength, elongation, hardness, such as switch contacts，Measuring a wider and more powerful can meet your various force measurement need, is your good assistant force measurement.
Main features of SHITO Sensor Outside Digital Force Gauge:
◆ Four liquid crystal display;
◆ The high accuracy ±0.2%;
◆ Up to 2,000 times/SEC sampling rate;
◆ Automatic memory 100 measured values;
◆ Set the measuring upper and lower;
◆ Real-time display measured values and measured curve;
◆ View each curve measured values ;
◆ Free setting the scan time;
◆ The screen can flip display;
◆ Set automatic shutdown of time;
◆ Set up automatic peak measuring time;
◆ Kgf.cm / Lbf.in / N.m conversion measurement;
◆ Automatic charge control;
◆ Battery consumption shows that elegant appearance;
◆ Take RS - 232 interfaces connected to the computer;
◆ Quadratic programming;
Technical Specification：
|
Model
|
Capacity
|
Graduation
|
Accuracy
|
Output
|
Programming
|
|
STO-0.2E
|
200.0gf
2.000N
8.00oz
|
0.1gf
0.001N
0.01oz
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-0.5E
|
500.0gf
5.000N
16.00oz
|
0.1gf
0.001N
0.01oz
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-1E
|
1000gf
10.00N
2.000lb
|
1gf
0.01N
0.001lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-2E
|
2.000kgf
20.00N
5.000lb
|
0.001kgf
0.01N
0.001lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-5E
|
5.000kgf
50.00N
10.00lb
|
0.001kgf
0.01N
0.01lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-10E
|
10.00kgf
100.0N
20.00lb
|
0.01kgf
0.1N
0.01lb
|
±0.2%
|
RS-232-
|
quadratic
|
|
STO-20E
|
20.00kgf
200.0N
50.00lb
|
0.01kgf
0.1N
0.01lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-50E
|
50.00kgf
500.0N
100.0lb
|
0.01kgf
0.1N
0.1lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-100E
|
100.0kgf
1KN
200Lb
|
0.10kgf
1.000N
0.1Lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-200E
|
200.0kgf
2KN
500Lb
|
0.10kgf
1.000N
0.1Lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-500E
|
500.0kgf
5KN
1KLb
|
0.10kgf
1.000N
1.000Lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-1KE
|
1Tf
10KN
2KLb
|
1.000kgf
10.00N
1.000 Lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-2KE
|
2Tf
20KN
5KLb
|
1.000kgf
10.00N
1.000Lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-5KE
|
5Tf
50KN
10KLb
|
1.00kgf
10.00N
10.00Lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-10KE
|
10Tf
100KN
20KLb
|
10.0kgf
100.0N
10.0Lb
|
±0.2%
|
RS-232
|
quadratic
|
|
STO-20KE
|
20Tf
200KN
50KLb
|
10.0kgf
100.0N
10.0Lb
|
±0.2%
|
RS-232
|
quadratic
|
